The programmable STEM drone that turns curious kids into confident young engineers.

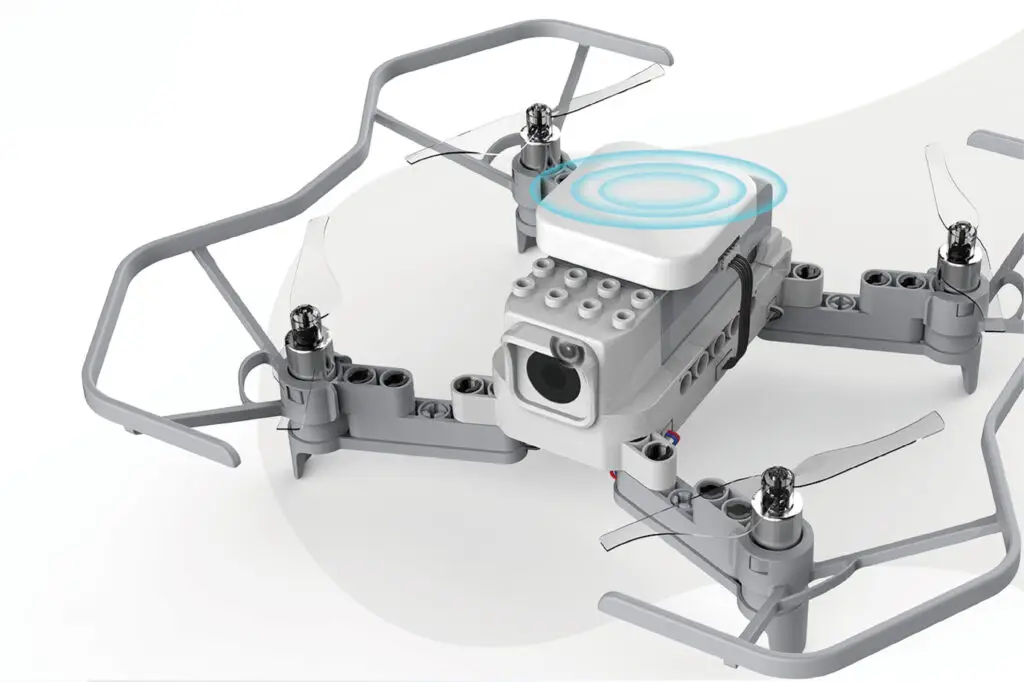

LiteBee Wing
Code With Blocks, Watch It Fly
LiteBee Wing is the next-step STEM drone for students aged 8–16. It combines block-based programming, modular assembly, and real flight to turn ideas into airborne projects.
Programmable Modular Competition-Ready
Highlights That Matter
Wing brings together programming, flight, and creativity in one modular platform.
Program & Swarm
Drag-and-drop code for multi-drone formations, flight simulations, and synchronized performances.
Modular Expansion
Add buzzers, LEDs, magnets, and obstacle-avoidance modules for music-light interaction and new missions.
Live FPV & 8MP Camera
Wi-Fi real-time video feed plus an 8MP camera and app control to capture every moment from the air.

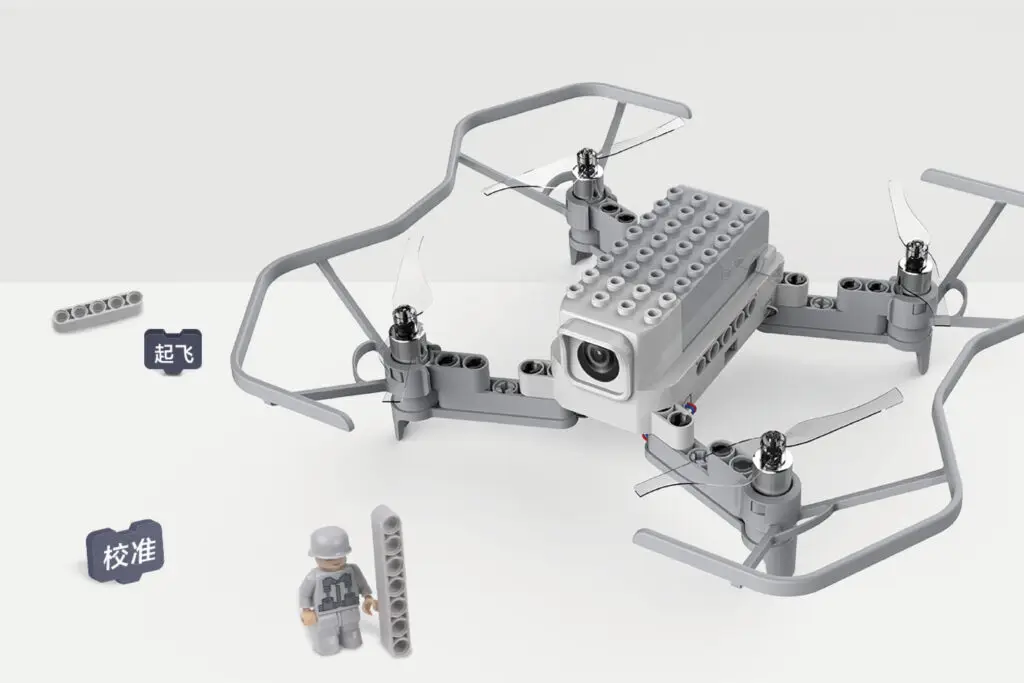

DIY Build Freedom
Interlocking blocks with adjustable-axis design let students build, rebuild, and invent custom frames.

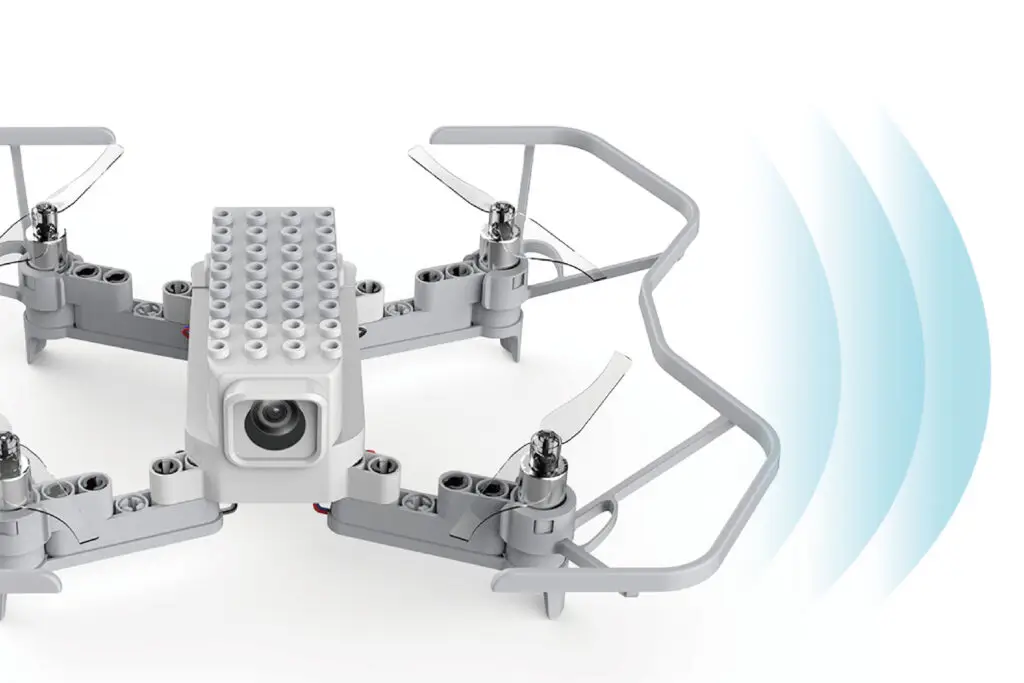

Dual Safety Protection
Over-discharge protection, low-voltage slow-descent alarm, and a high-strength guard ring.

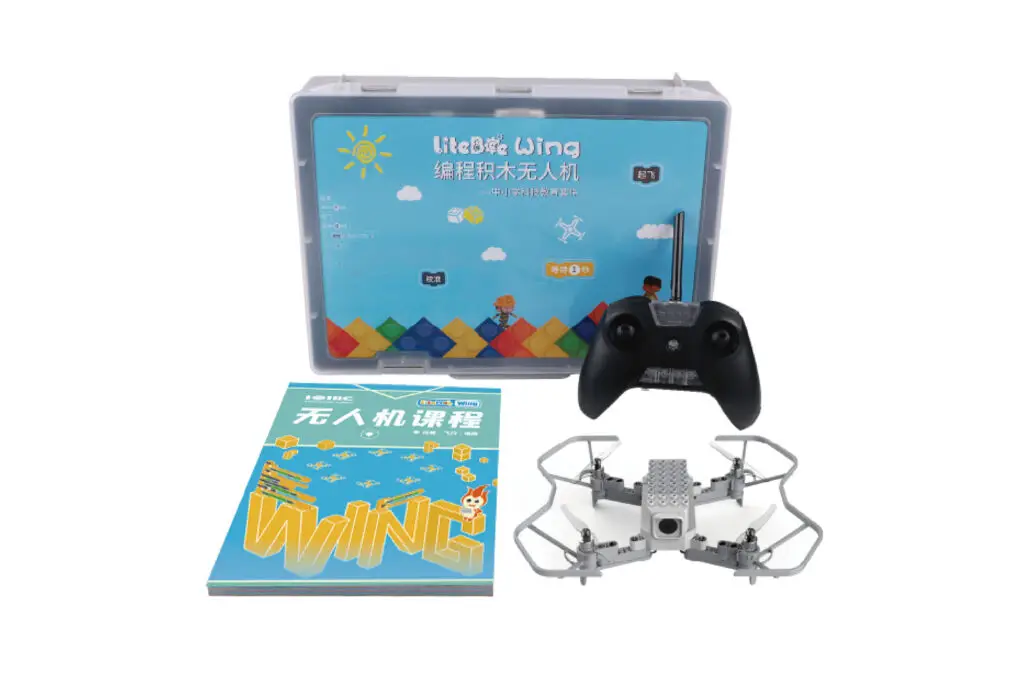

Full Curriculum
Rich digital and printed resources fuse multiple subjects so teachers can teach with confidence.
Engineering That Grows With the Student
Wing looks approachable, but its airframe is a genuine engineering platform. A high-efficiency 1020 motor, 8MP camera with live FPV, and an adjustable-axis modular frame let learners start with guided builds and grow into open-ended invention.
-
1020 / 32,000 RPM motor
Responsive, stable power for indoor and light outdoor flight. -
8MP camera + Wi-Fi FPV
Aerial capture and first-person view through the companion app. -
Adjustable-axis modular frame
Rebuild endlessly and add sensors, LEDs, or payload modules.
Weight
128g
Wheelbase
148mm
Motor
1020 / 32K rpm
Battery
2S 7.4V 600mAh
Propeller
76mm
Camera
8MP
Flight Time
~11 min
Range
100m
JPG
Video
MP4
Designed for STEM Education
Brix III isn’t just a product — it’s a complete entry-point STEM learning solution.
School Curriculum
Structured programming and flight curriculum aligned with intermediate STEM objectives for ages 8–10.
Competition Training
Ready-to-use routines and coaching resources for formation, logistics, and maze events.
After-School Clubs
Project-based sessions that turn clubs into innovation labs with real deliverables.
Maker Projects
Open-ended builds for makerspaces where students combine sensors, code, and custom frames.
LiteBee Wing +Expansion KIt

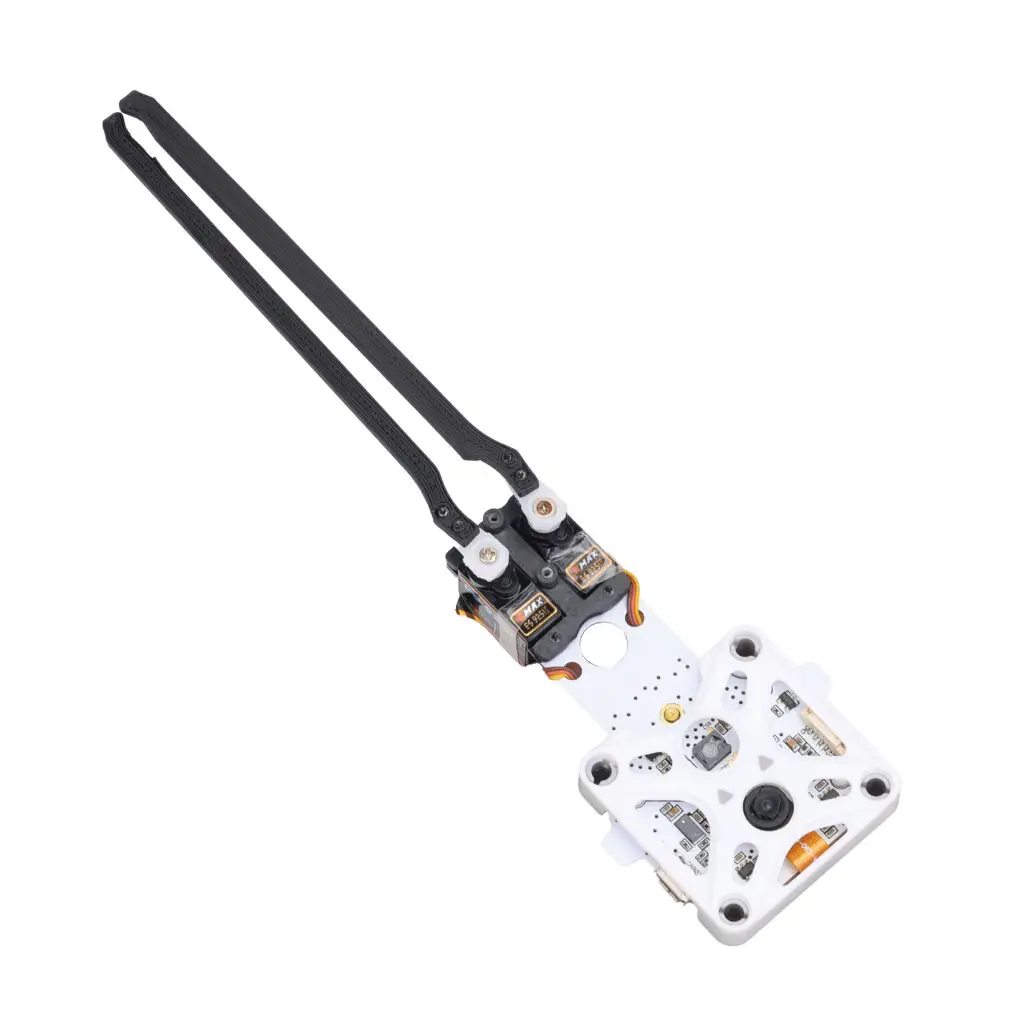

Pick-and-Place Gripper Extension Kit
Ages: 10‑15
Developed for the LiteBee Wing programmable drone, this module runs on the LiteBee Go programming platform. It supports programmed gripper operations to grab, transport and drop objects. Position markers assist LiteBee Wing for accurate positioning.
Model
Y35‑V2
Positioning Aid
Position Markers
Programming LED
W2812 (RGB)
Color Detection
Black, Red, Green, Blue
Servo Type
180° Digital Servo
Operating Voltage
4.8‑6.0V
Torque
0.3 kg·cm
Speed
0.09 sec/60°
Max Gripper Opening Angle
180°
Max Diameter of Grabable Object
80 mm
Max Gripping Payload
8 g
Electromagnet delivery Extension Kit
Ages: 10‑15
The Magnetic Lifting Expansion Kit pairs with LiteBee Wing and modular kits on the LiteBee Go programming platform. Program it to lift and release ferrous‑material objects. Position markers help LiteBee‑Wing achieve precise positioning. This kit boosts engagement in hands‑on STEM learning and builds students’ comprehensive practical skills.
Model
Y17‑AI
Position Marker Size
24*30 cm
Dimensions
40*40*08 mm
Max Magnetic Pull Load
500 g
Operating Voltage/Current
5V / @80 mA
Effective Payload
0‑8 g

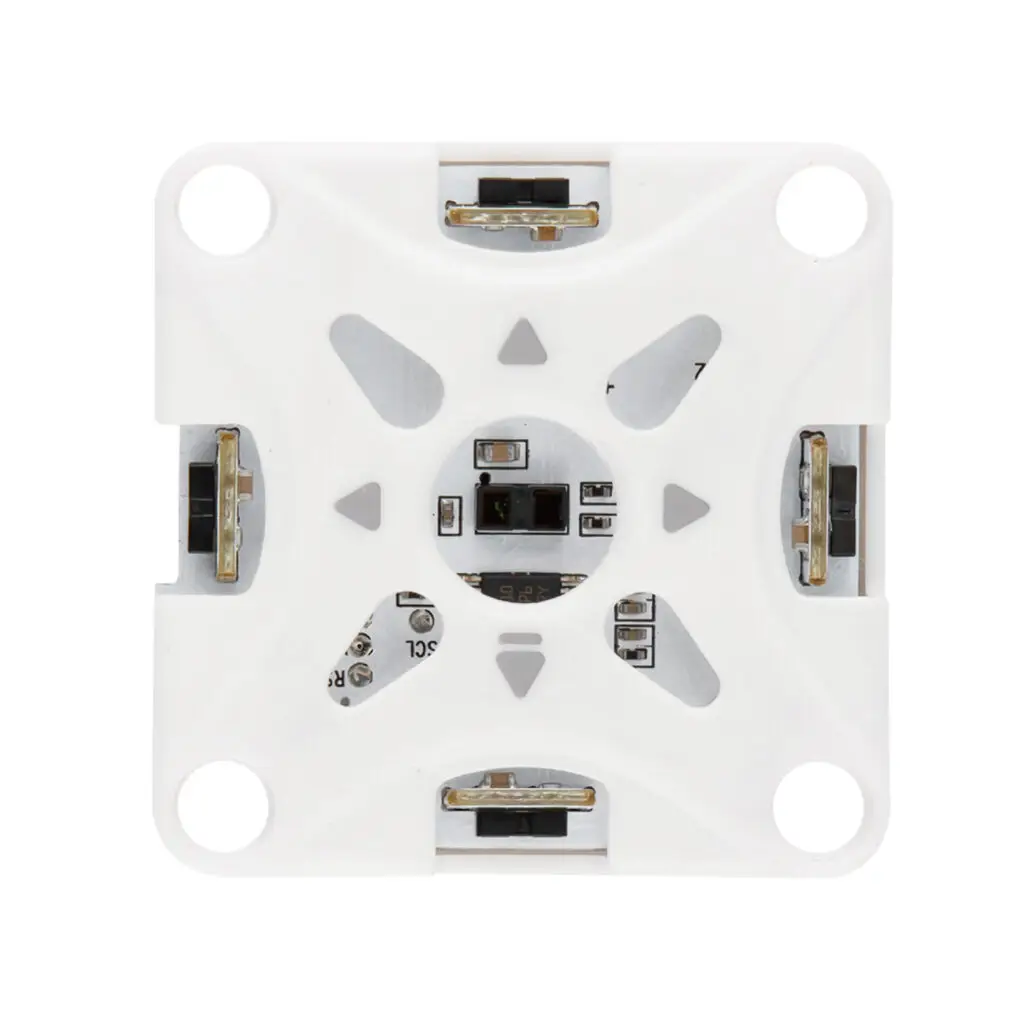

Obstacle Avoidance Extension Kit
Ages: 10‑15
Used with LiteBee Wing on the LiteBee Go programming platform, this module detects obstacles in five directions: forward, backward, left, right and downward. Program it for autonomous obstacle‑avoiding flight to reach assigned destinations.
Model
Y18‑AI
Dimensions
40*40*09 mm
Operating Voltage
5V
Operating Current
90 mA
Detection Range
3‑200 cm
Certified for Classrooms
Every LiteBee product meets international safety and quality standards — independently tested and backed by full documentation for school procurement.
CE
RoHS
FCC (US)
UN38.3
Continue Your Journey
Brix III is just the beginning. As students grow, LiteBee grows with them.
STAGE Ⅲ
LiteBee Wing X
LiteBee Wing X
How LiteBee Partners With You for STEM Success
We partner with you every step of the way, delivering tailored solutions that drive growth, efficiency, and lasting success.
